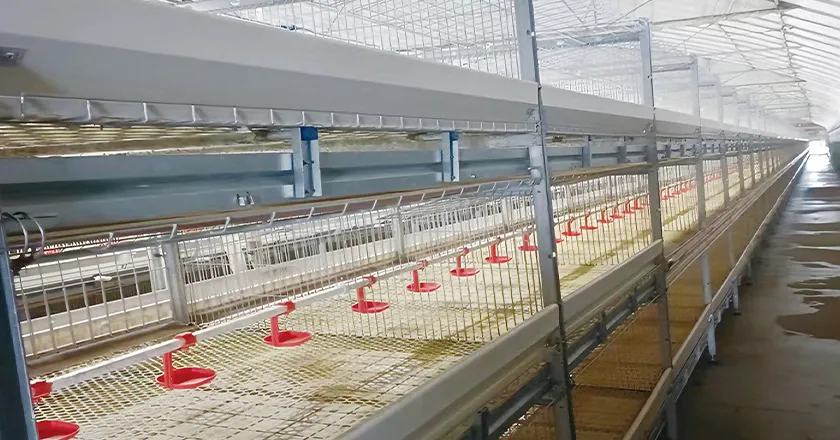

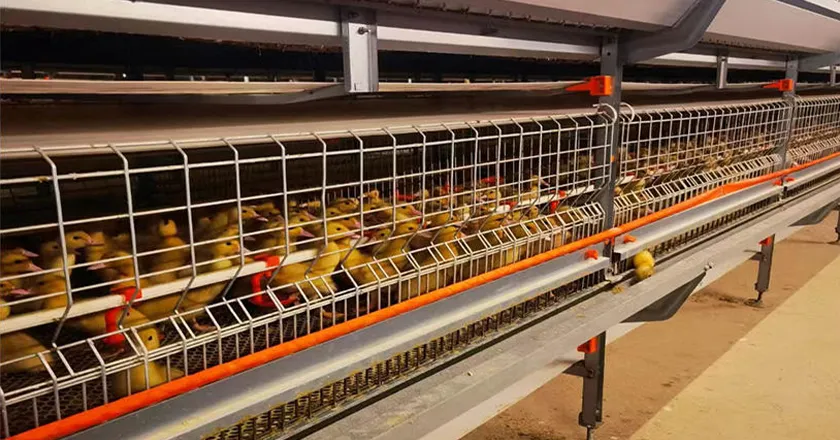

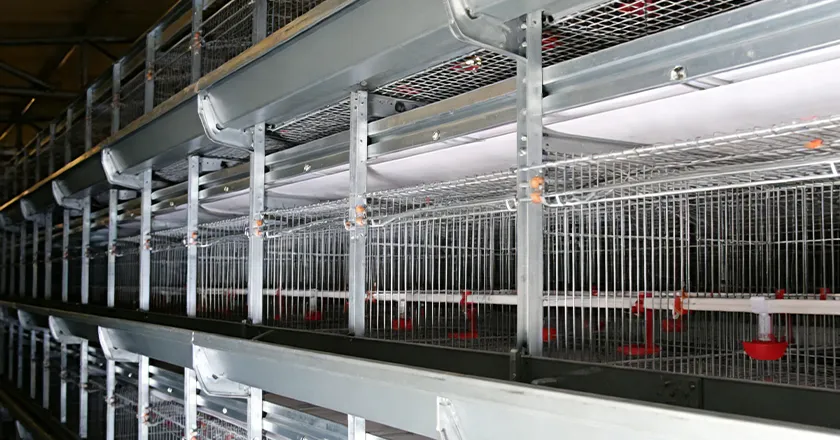

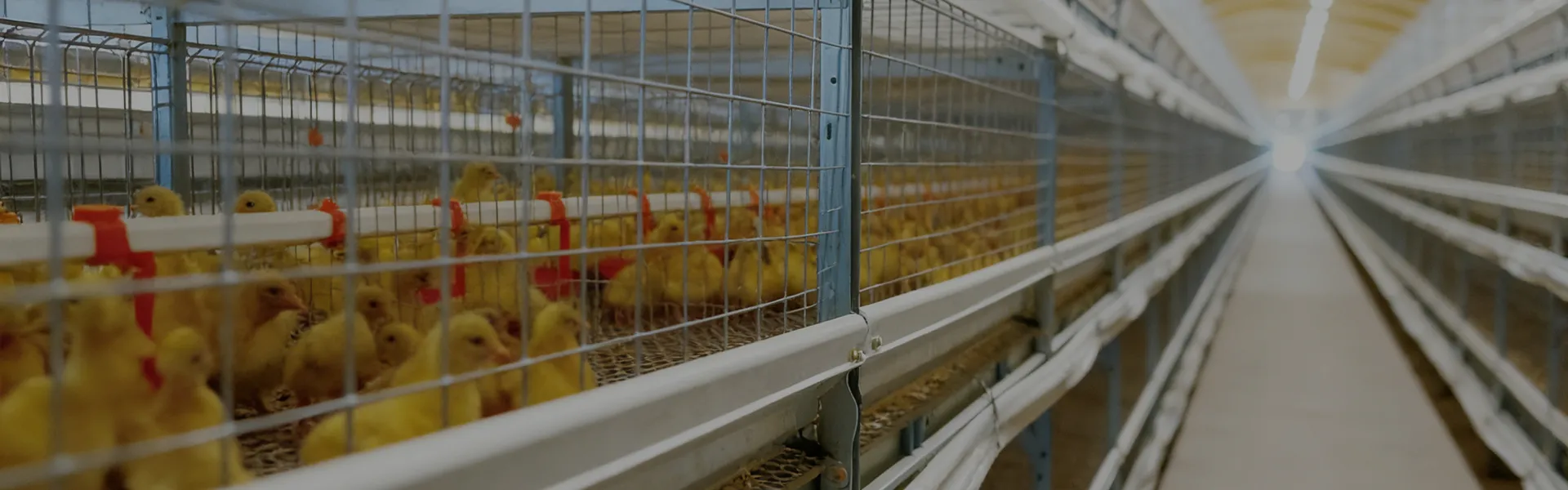

Efficient laminated cages for organized, easy-to-manage broiler duck farming

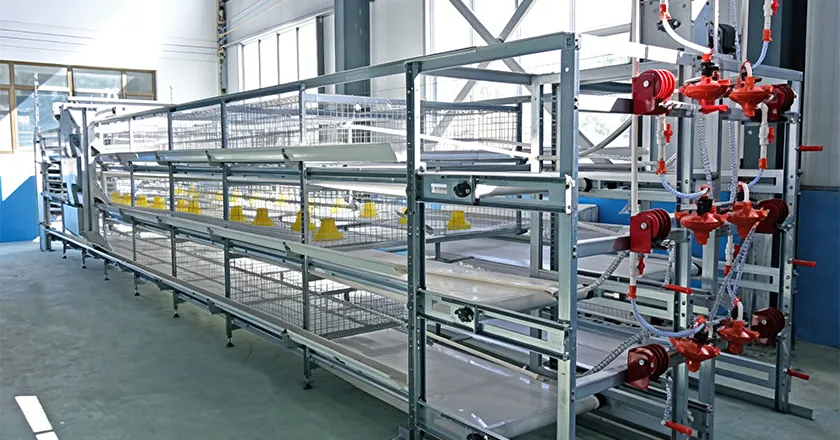

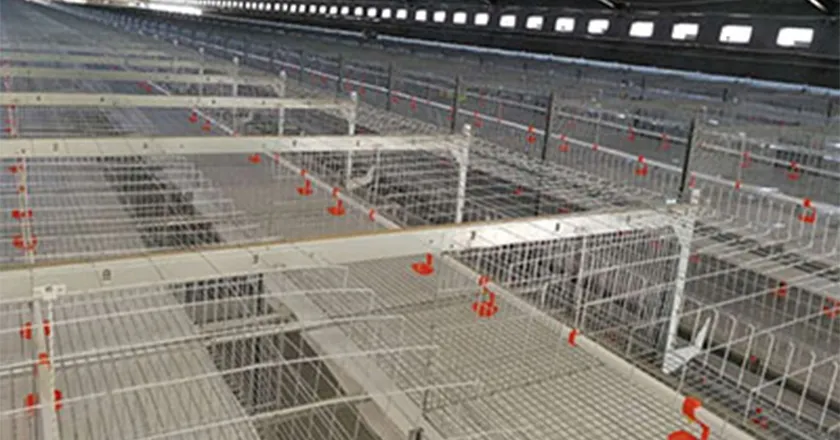

The Laminated Breeding Equipment System for Broiler Duck is a stacked cage solution for intensive duck farming. The cage frame is pre-assembled for accurate installation and easy maintenance. Double-sided open doors allow convenient feeding, inspection, and bird handling from both aisles. PVC baffles guide manure and reduce contact with waste, while the optimized defecation design prevents belt deviation and ensures cleaner, more efficient manure removal.

Key Features of Laminated Broiler Duck Cage System

Fully assembled cage frame
The frame is supplied as a complete assembly, providing high installation precision and making on-site erection faster and easier.

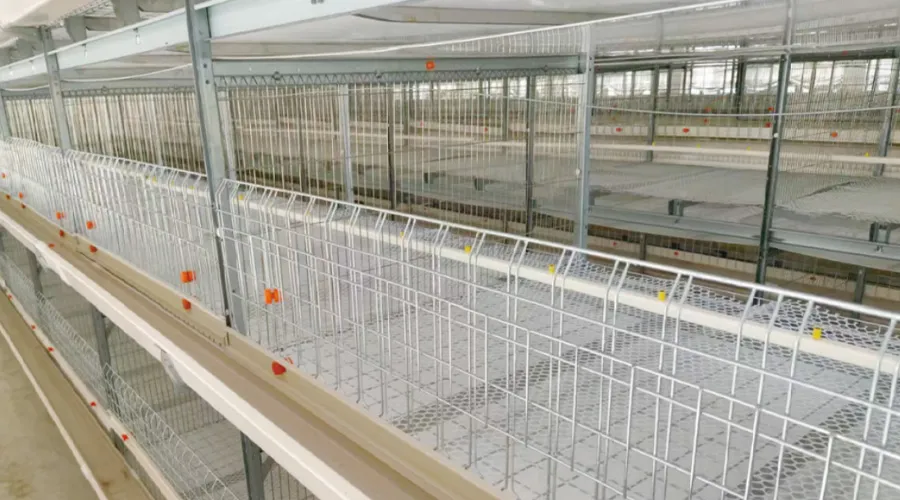

Double-sided open door cage design
Doors can be operated from both sides of the cage row, which simplifies feeding, bird checking and daily management for broiler ducks.

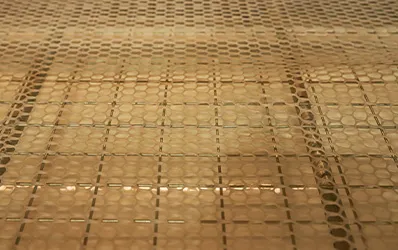

PVC material baffles
PVC baffles are used as partitions and protection plates, with smooth surfaces that are easy to clean and resistant to corrosion.

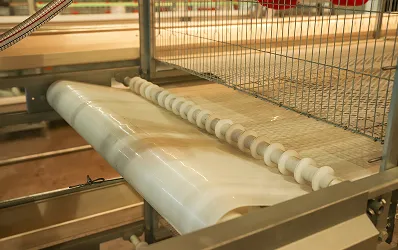

Optimized manure removal mechanism
The defecation structure is designed to keep the manure belt running in a stable position, minimizing belt deviation and helping manure to be thoroughly cleaned from the system.

Why Choose This Laminated Broiler Duck Cage System

Accurate installation & convenient maintenance
Because the cage frame is fully assembled, the structure remains stable, and maintenance work such as inspections and tightening is simpler.

Comfortable operation for workers
Double-sided doors and clear aisle access mean feeding, vaccination and removal of ducks can be carried out more easily, reducing labor intensity.

Cleaner manure management
The dedicated defecation mechanism reduces manure accumulation on the belt and in the cages, helping maintain cleaner floors and supporting better hygiene in the duck house.

Durable materials in key positions
PVC baffles and a well-designed belt path reduce corrosion and mechanical wear in the manure area, which can help extend the service life of the equipment.

Technical Specifications Section

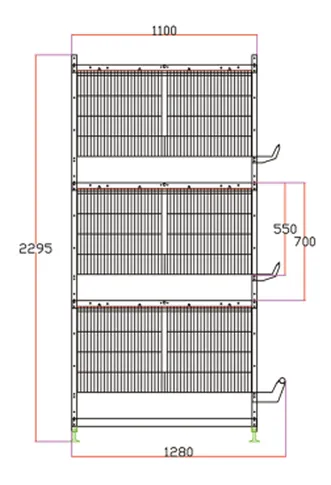

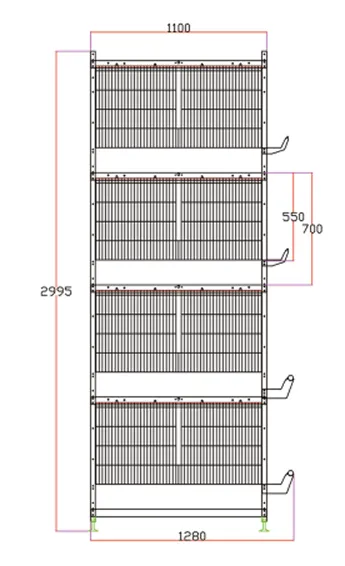

3/4 Tiers Single Cage for Broiler Duck – Technical Specifications

Model	Average Area per Bird(cm²)	Birds per Cage	Tier Distance (mm)	Cage Length (mm)	Cage Width (mm)	Cage Height (mm)	Total Height (mm)
3 Tier	657	23	700	1350	1100	550	2295
4 Tier	657	23	700	1350	1100	550	2995

3-tier

4-tier

Advantages of 3-Tier and 4-Tier Duck Farming Systems

3-TIER SYSTEM:

Accessible structure, easy to manage

Ideal balance of bird density and ground clearance

Lower initial investment vs. 4-tier

Lighter overall load on building supports

4-TIER SYSTEM:

Maximized bird capacity per footprint

Excellent land/space utilization for large-scale farms

Highest output and profit potential

Greater vertical farming flexibility

Smart Design, Built for Durability

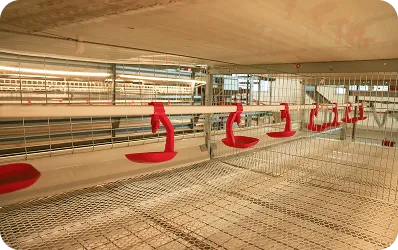

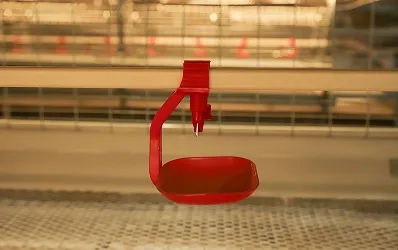

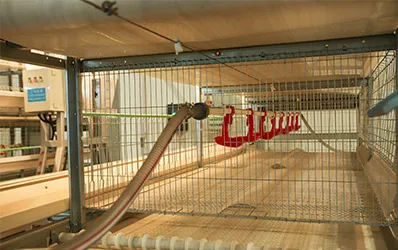

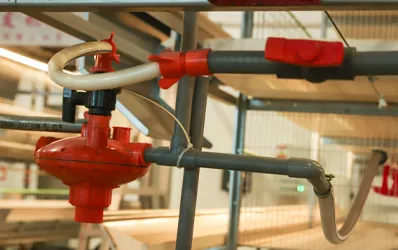

Our laminated duck cage system is meticulously designed, with every detail carefully considered, from the reinforced galvanized frame and double doors to the splash-proof PVC baffles and sanitary water pipes. Each component is optimized to ensure long-term use, ease of cleaning, and improved duck welfare in high-density farming environments.
