Improve Ventilation & Automate Chicken Harvesting in Broiler Cage Farming

The H-Type Automatic Broiler Cage with Harvesting System is a stacked automatic chicken cage raising system specially used for broilers. To solve the high labor intensity, high chicken injury rate and high chicken-out cost of traditional cage farming, the company independently developed a chain-type automatic harvesting broiler cage. By moving the bottom net of the cage as a whole when the broilers are stationary, chickens are transferred out through the chain floor, which reduces damage during the chicken-out process and improves the service life of the equipment. At the same time, the chicken-out personnel only need to put the chickens into baskets outside the house, greatly reducing work intensity and improving safety.

Key Features of H-Type Automatic Broiler Cage with Harvesting System

Pre-assembled H-type cage frame for fast installation and easy maintenance

Heavy-duty hot-dip galvanized structure for long service life

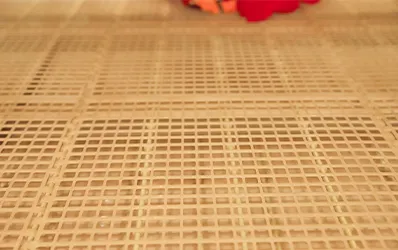

Double-sided open doors and PP flexible floor to protect broilers and reduce skin damage

Adjustable nipple drinking line to match broiler growth stages

Special broiler feeding tray for fully automatic feeding from chick-in to harvest

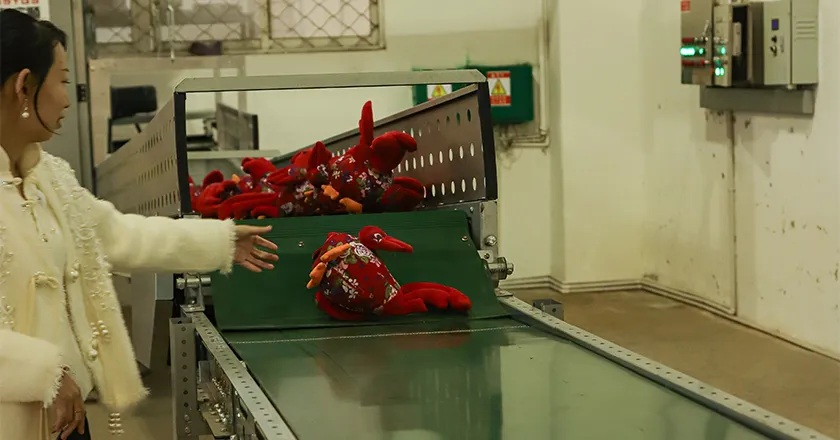

Chain-type automatic harvesting system transfers broilers directly out of the cage

Built-in lighting and larger tier spacing for better ventilation, faster growth and lower labor cost

Why Choose This H-Type Automatic Broiler Cage

Reduce labor cost – automatic feeding + chain-type harvesting, workers mainly collect chickens at the end.

Lower injury rate – moving bottom net and chain floor reduce damage during chicken-out.

Save harvesting cost – faster, more efficient chicken-out process.

Strong & durable – fully assembled frame with galvanized sheet for high strength and long life.

Excellent corrosion resistance – coated galvanized components for harsh farm environments.

Better broiler welfare – PP flexible floor and proper lighting protect skin and help birds find feed and water easily.

Improved house environment – larger tier spacing for better ventilation and faster broiler growth.

Technical Specifications

H-Type Automatic Broiler Cage – Technical Specifications

Product Type	Cage Type	Use	Tiers	Material	Life Time	Application
Automatic harvesting broiler breeding cage	H Type	Chicken	3 / 4 / 5 / 6 / 8 / 9 / 10 tiers	Hot-dip galvanized steel sheet	15–20 years	Commercial chicken feeding

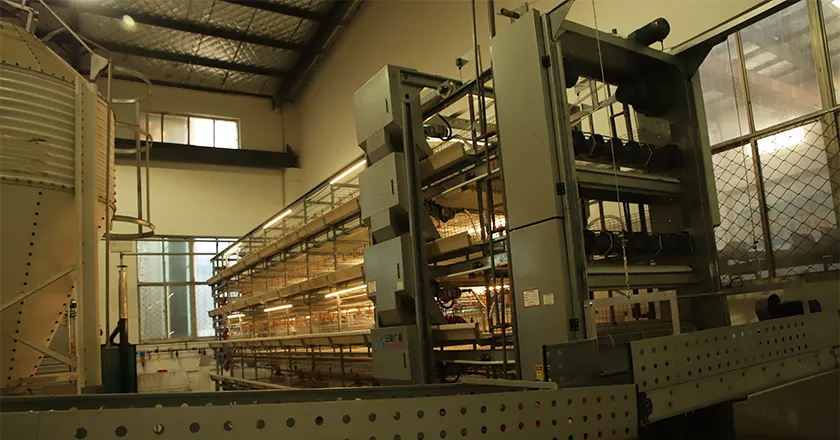

H-Type Automatic Broiler Cage with Harvesting System

Advantages of H-Type Automatic Broiler Cage with Harvesting System

Greatly reduces manual chicken-out work and improves safety of personnel

Helps solve problems of high labor intensity, high injury rate and high chicken-out cost

Protects broiler skin, breasts and feet through PP flexible floor design

Chain floor harvest and bottom-net movement shorten the chicken-out process and reduce equipment wear

Automatic feeding, adjustable water line and internal lighting create convenient daily management conditions

Larger space between layers enhances ventilation and supports fast broiler production

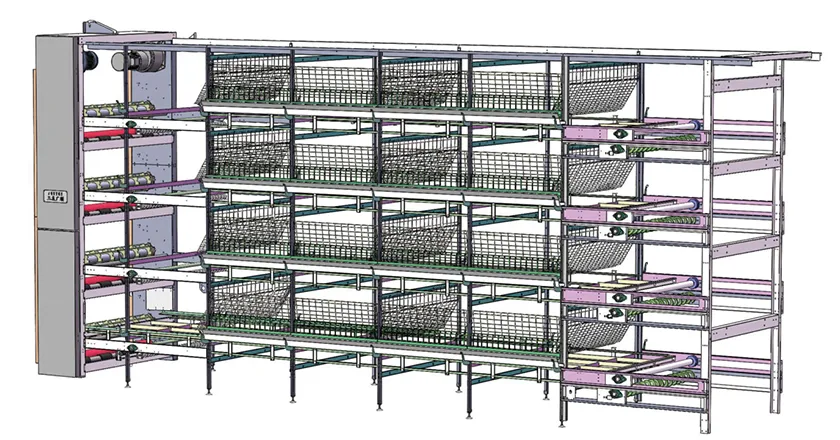

Cage Structure and Material Details

Key structural components for chain-type automatic broiler harvesting

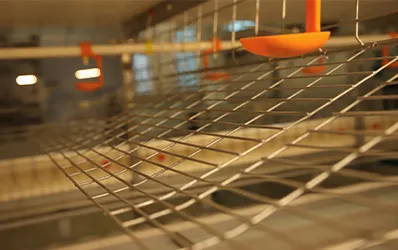

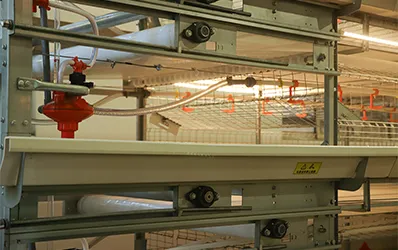

Automatic Adjustable Water Line

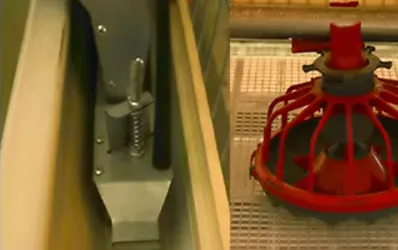

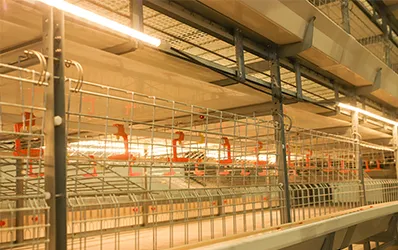

Special Broiler Feeding Tray for Saving Labors

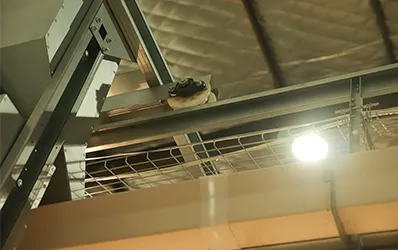

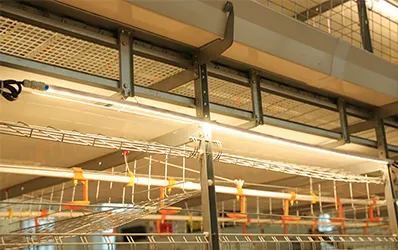

In-Cage Lighting System
Two Feeding Systems Are Available

Detailed display

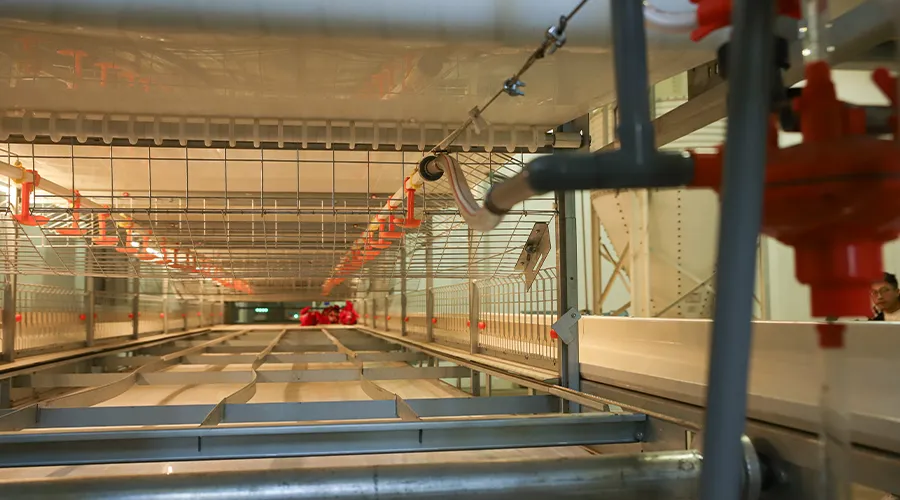

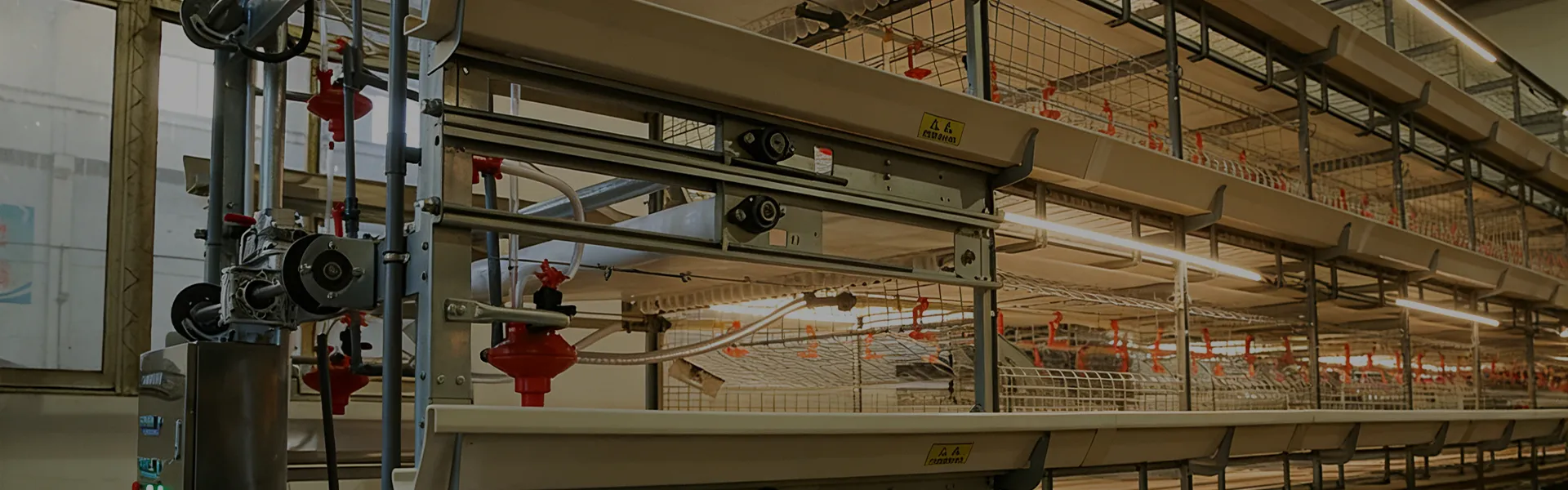

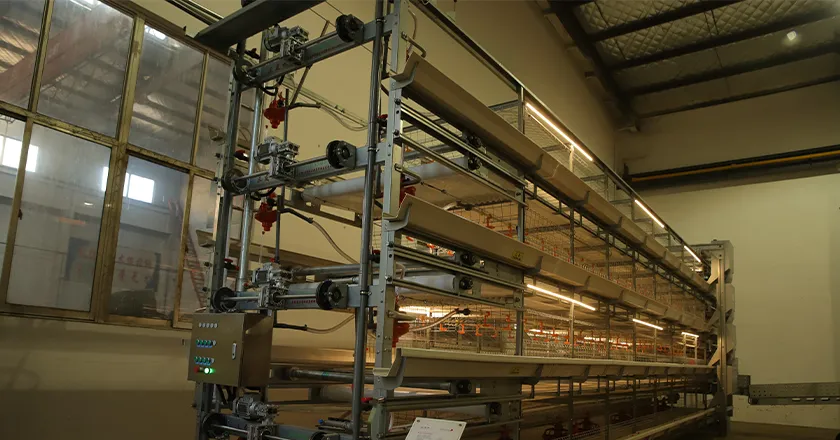

Our stacked H-type broiler cages equipped with chain floors, adjustable water lines, special feeding trays and internal lighting. The automatic broiler harvesting system forms a neat and efficient layout in the house, supporting continuous feeding, brooding, growing and chicken-out operations with reduced labor and improved flock handling safety.
