Laminated breeding equipment system for broiler farms with hot-dip galvanized structure and good ventilation

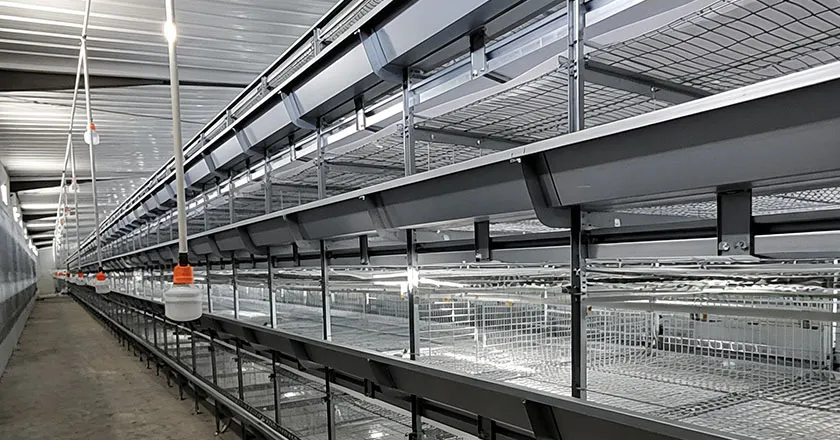

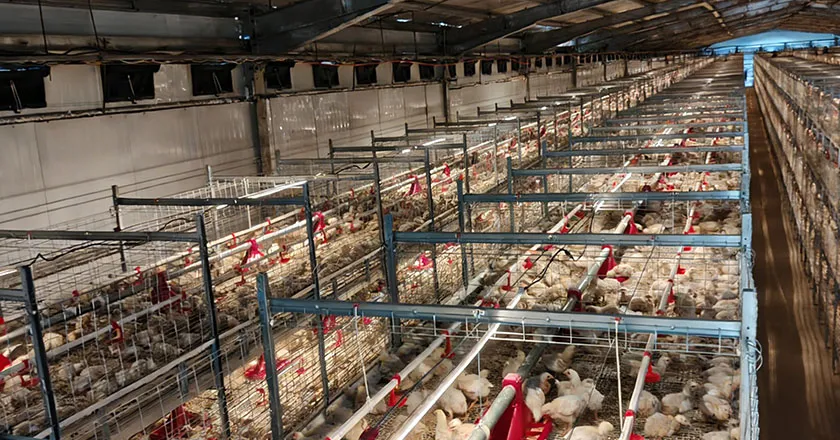

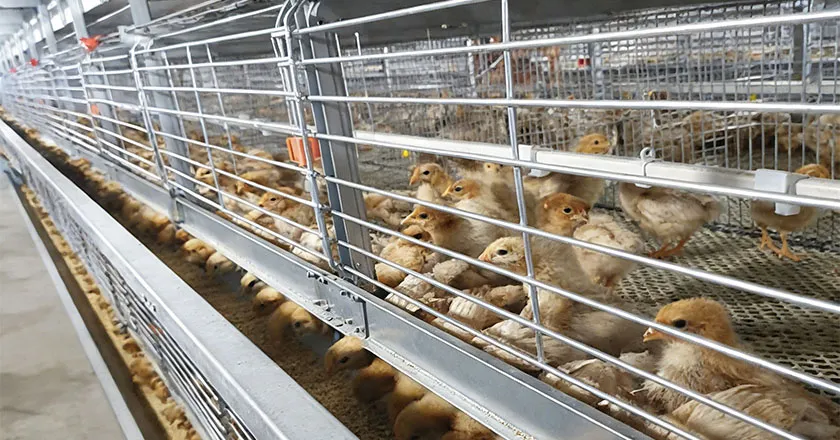

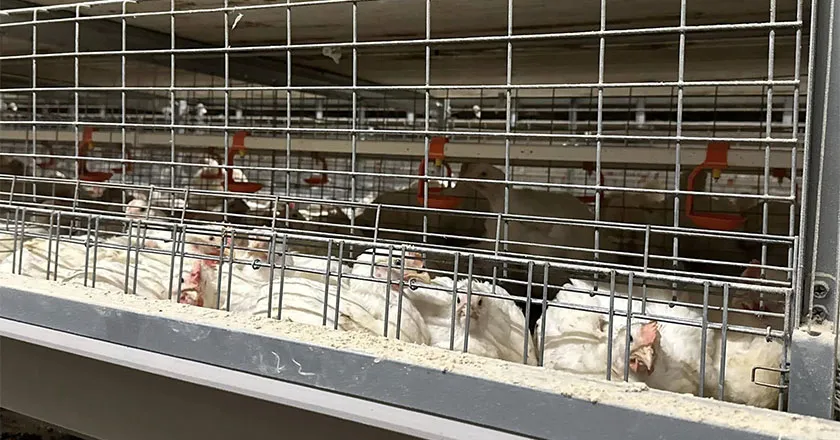

H-Type Automatic Broiler Battery Cage System

Improve Broiler House Ventilation with Laminated H-Type Battery Cages

The H-Type Automatic Broiler Battery Cage System is a laminated breeding system designed for commercial broiler farms. The main frame uses patternless hot-dip galvanized steel sheet with a 275 g/m² zinc layer, and all cage wires are fully hot-dip galvanized after welding, ensuring a smooth surface and long service life. Sturdy horizontal and vertical frameworks keep the battery cage stable, while optimized cage dimensions and ventilation spaces above and below the cages improve airflow and help maintain a healthy house environment for broilers.

Key Features of H-Type Automatic Broiler Battery Cage System

Patternless hot-dip galvanized main structure with galvanized layer thickness of 275 g/m²

Overall hot-dip galvanized cage wire after welding, without zinc slag and with long service life

Sturdy horizontal and vertical frameworks, simple and efficient, ensuring cage stability without collapse

Ventilation space of 450 mm above the cage, allowing airflow above each cage row

Open ventilation openings on both sides below the cage (50–80 mm), improving air circulation at bird level

Why Choose This H-Type Broiler Battery Cage System

Reliable structure – the laminated H-type frame and cross members are designed to be strong and stable for long-term broiler farming

Corrosion-resistant materials – full hot-dip galvanizing of sheets and cage wire helps protect the cages in humid poultry house environments

Optimized cage size for broilers – 1250 mm length and 1000 mm width provide suitable space for commercial meat chicken growing

Good ventilation design – combined upper ventilation space and lower side openings help reduce heat and moisture around the birds

Simple and efficient layout – multi-tier laminated structure makes full use of the building height and is convenient to combine with feeding and drinking lines

Technical Specifications

H-Type Automatic Broiler Battery Cage System– Technical Specifications

Tiers Average Area per Bird(cm²) Birds per Cage (pcs) Tier Distance (mm) Cage Length (mm) Cage Depth (mm) Cage Height (mm) Total Height (mm)
3 500 25 600 1250 1000 450 2000
4 500 25 690 1250 1800 490 3039

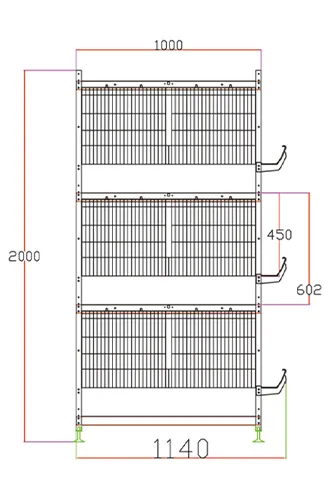

3-Tier H-Type Broiler Battery Cage
3-Tier H-Type Broiler Battery Cage

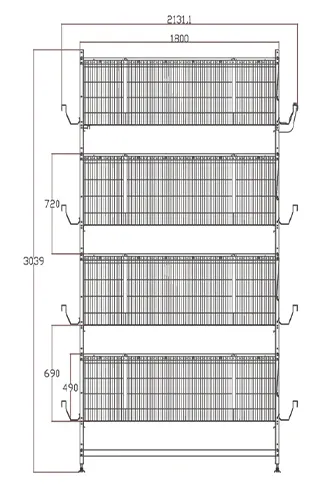

4-Tier H-Type Broiler Battery Cage
4-Tier H-Type Broiler Battery Cage

Advantages of Laminated H-Type Broiler Battery Cage System

Main frame made of hot-dip galvanized sheet with 275 g/m² coating, providing excellent corrosion resistance

Fully hot-dip galvanized cage mesh gives a smooth surface and long lifespan

Stable laminated structure – horizontal and vertical frames ensure the battery cage is firm and not easy to deform or collapse

Cage and ventilation design help create a well-ventilated broiler house with airflow above and below the cages

Suitable for commercial broiler feeding in intensive poultry houses

Cage Structure and Material Details

Durable hot-dip galvanized laminated broiler cage design

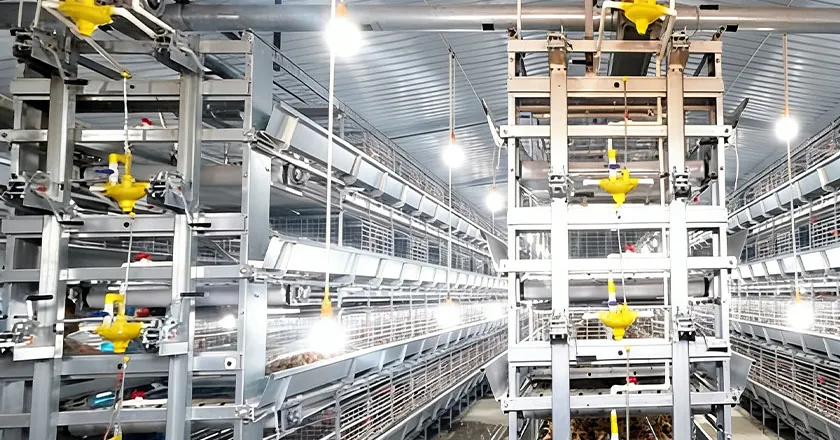

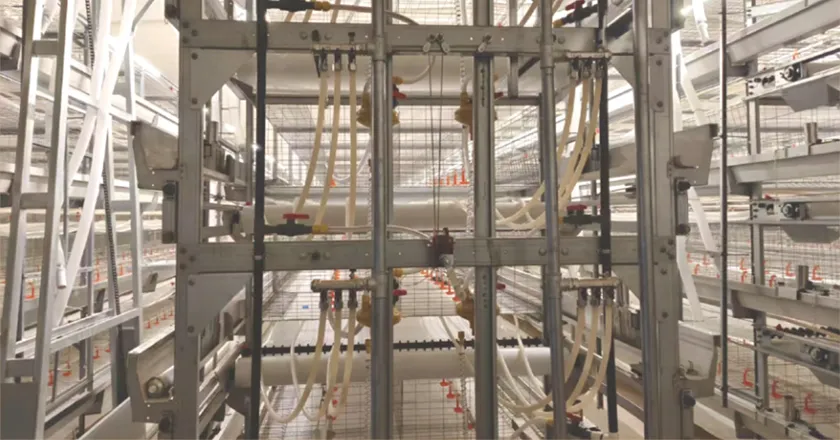

  • Hot-dip galvanized main posts and beams

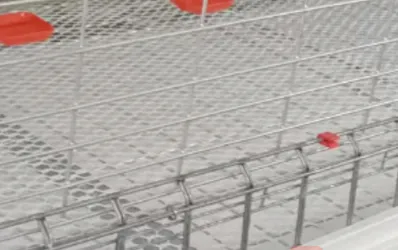

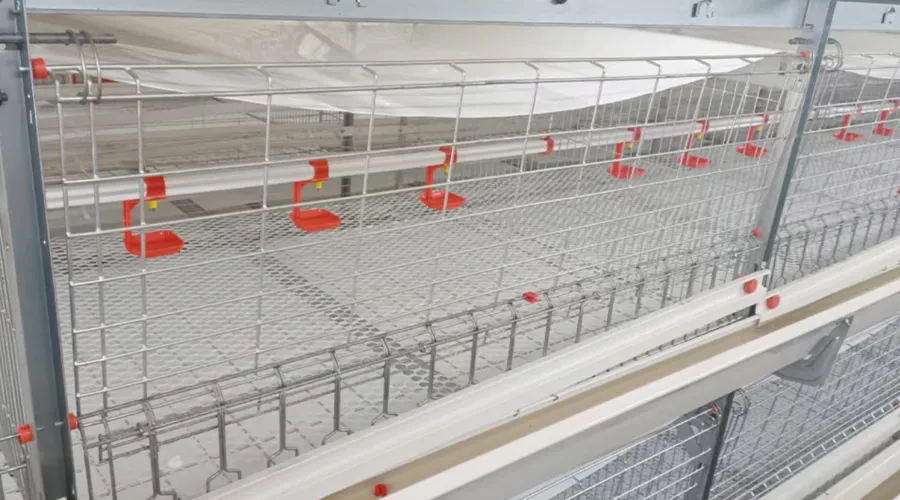

  • Smooth galvanized cage mesh

    Smooth galvanized cage mesh

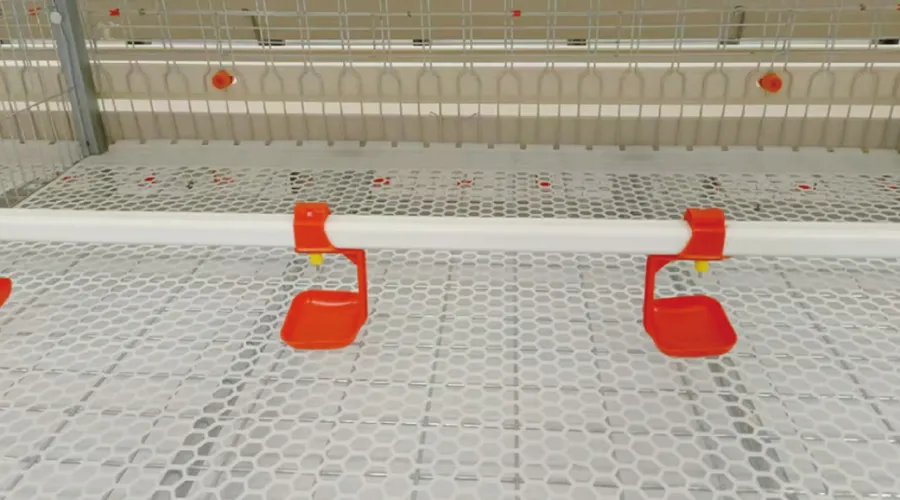

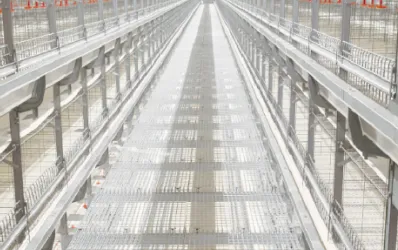

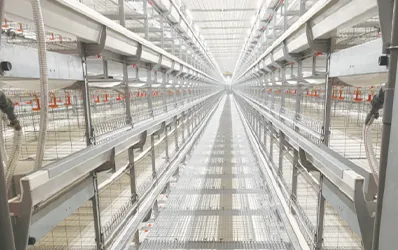

  • Ventilated cage floor and aisles

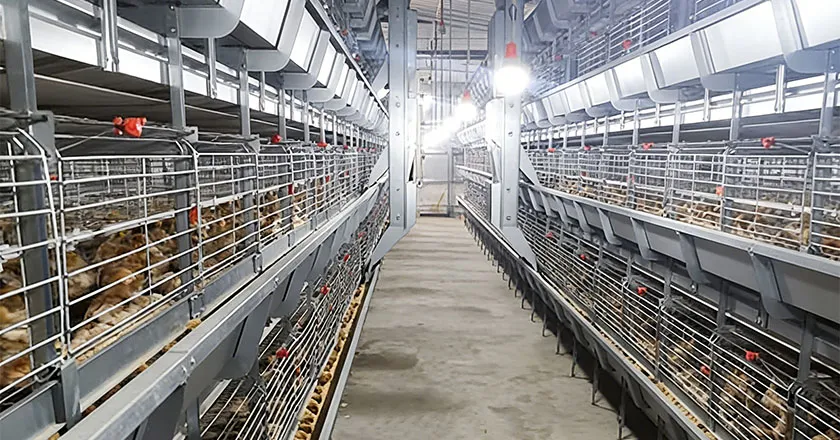

  • Continuous broiler cage rows
