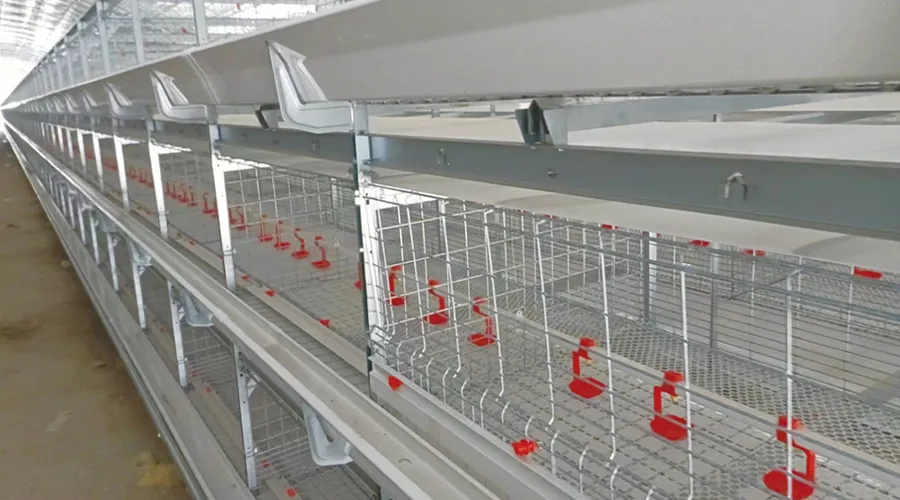

The Double Broiler Battery Cage (3/4 Tiers) is a laminated broiler rearing system designed for commercial poultry farms. The main frame is made of 275 g/m² hot-dip galvanized steel, and the cage mesh is fully hot-dip galvanized after welding, providing a smooth, corrosion-resistant surface and long service life. Each unit measures 1250 × 800 mm with a double-cage design and a large mesh front door for easy handling and management. The horizontal and vertical connections are firm and stable, ensuring the cage structure remains secure without deformation.
Main structure made of patternless hot-dip galvanized sheet, galvanized layer 275 g/m²
Cage wire uses post-welding hot-dip galvanizing process, without zinc slag and suitable for long lifespan
Strong horizontal and vertical connection structures, simple and efficient, keeping the cage stable without collapse
Double cage for broiler design to improve space utilization inside the poultry house
Standard cage size 1250 mm length × 800 mm width per unit
Large mesh door with overall internal push, more convenient for human operation
Corrosion-resistant hot-dip galvanized construction helps extend cage service life in broiler houses
Stable framework reduces deformation risk and supports safe multi-tier operation
Double cage layout increases effective stocking capacity within the same building footprint
Large internal mesh door makes inspection, feeding assistance and bird catching easier
Simple, efficient connection structure reduces installation difficulty and maintenance work
Double Broiler Battery Cage (3/4 Tiers)– Technical Specifications
| Tiers | Average Area per Bird (cm²) | Birds per Cage (pcs) | Tier Spacing (mm) | Cage Length (mm) | Cage Width (mm) | Cage Height (mm) | Total Height (mm) |

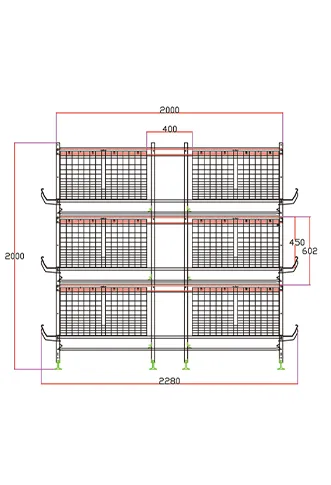

| 3 | 500 | 25 | 600 | 1250 | 800 | 450 | 2000 |

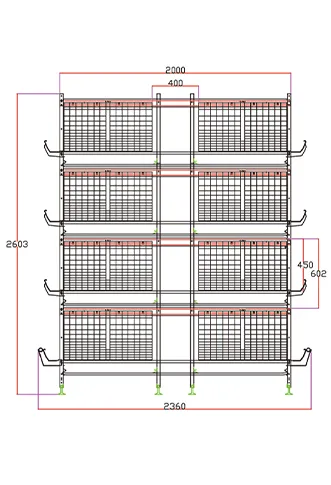

| 4 | 500 | 25 | 620 | 1250 | 800 | 450 | 2603 |
Hot-dip galvanized main frame and mesh provide excellent corrosion resistance
Post-welding galvanizing without zinc slag offers smooth cage surfaces and long service life
Sturdy laminated frame with horizontal and vertical connections ensures cage stability
Double cage units and 3/4-tier options allow flexible capacity planning in broiler houses
Large mesh doors with internal push design improve operator convenience during daily management
Durable hot-dip galvanized laminated broiler cage design

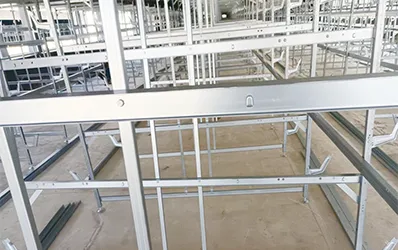

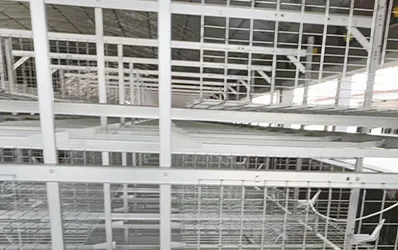

Hot-dip Galvanized Main Frame

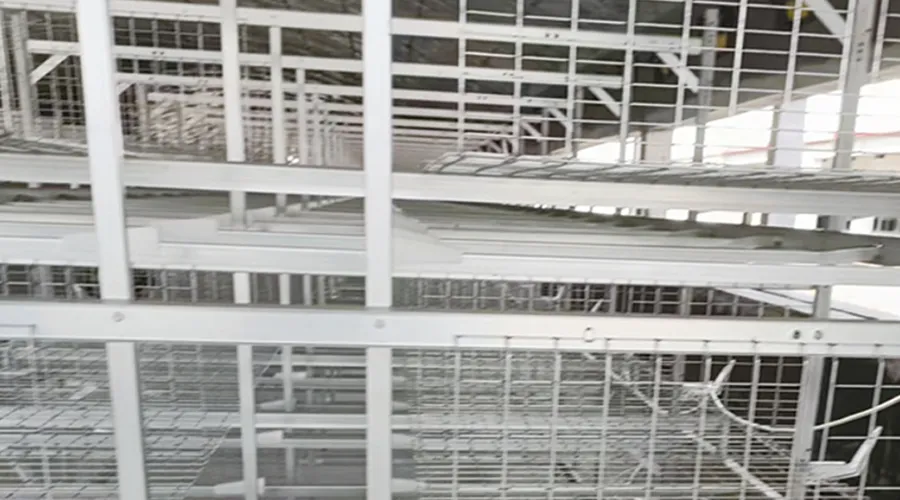

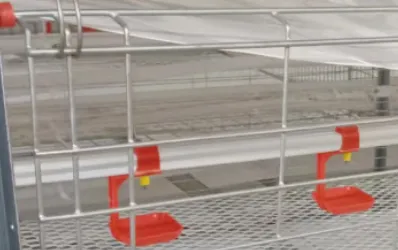

Post-Weld Galvanized Cage Mesh

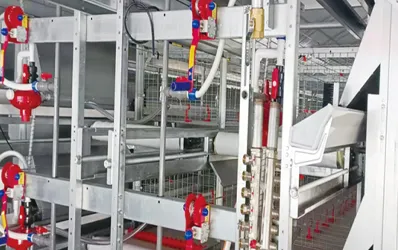

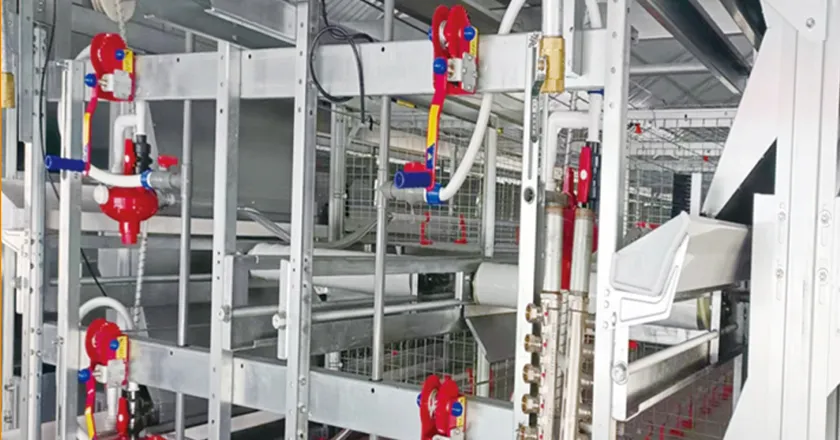

Horizontal & Vertical Connection Frame

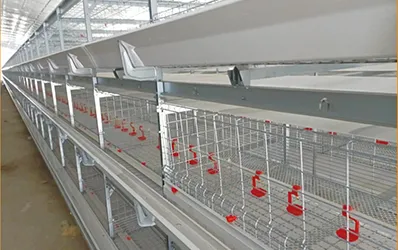

Large Internal Push Mesh Door

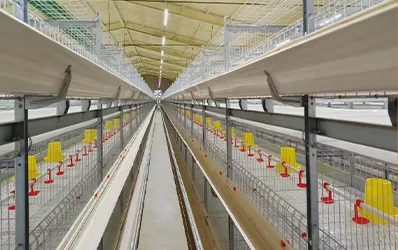

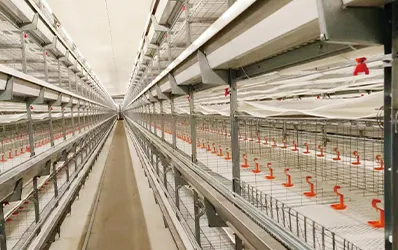

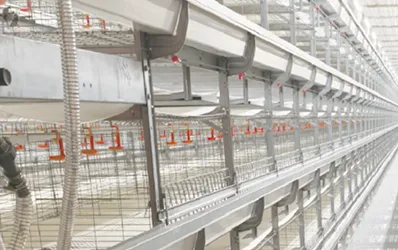

The Double Broiler Battery Cage (3/4 Tiers) forms long laminated rows inside the broiler house, with uniform hot-dip galvanized frames, double cages and wide central aisles. The on-site images show a clean, orderly cage layout that supports intensive broiler production while maintaining good structural stability and convenient daily management.
